Create your own blade.

[Felmonte09]

Ok here are the finished blades from the series .
View attachment 8744View attachment 8745

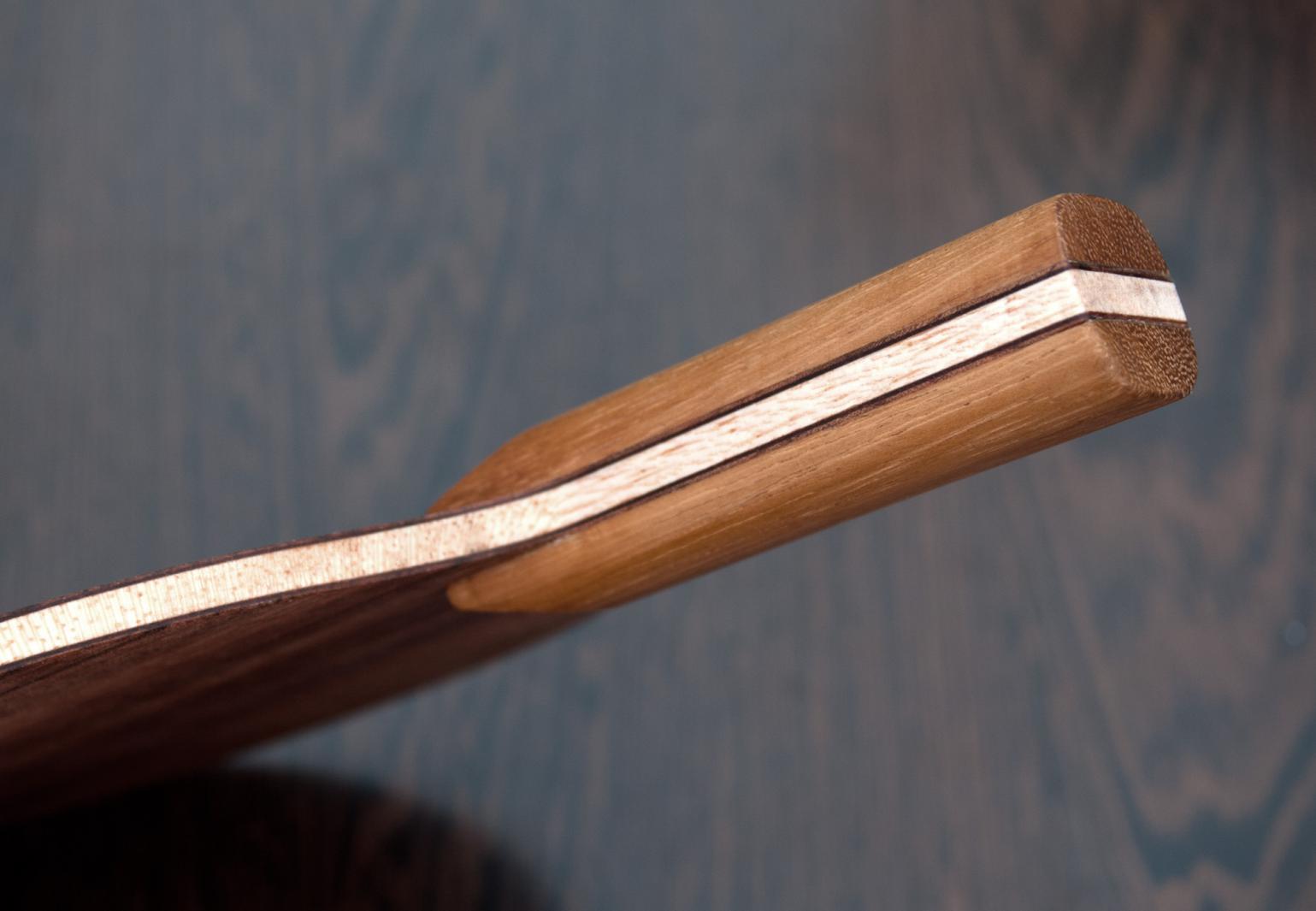

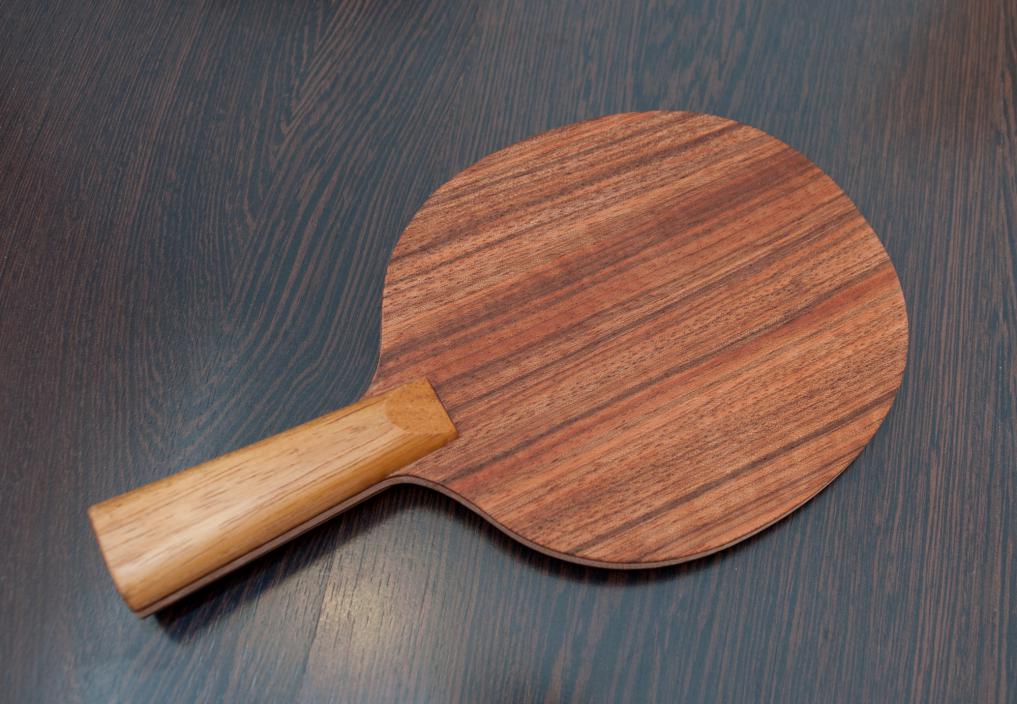

This is all+ , 85g
boire , mahogany, balsa, mahogany , boire
handle : IROKO
View attachment 8746View attachment 8747

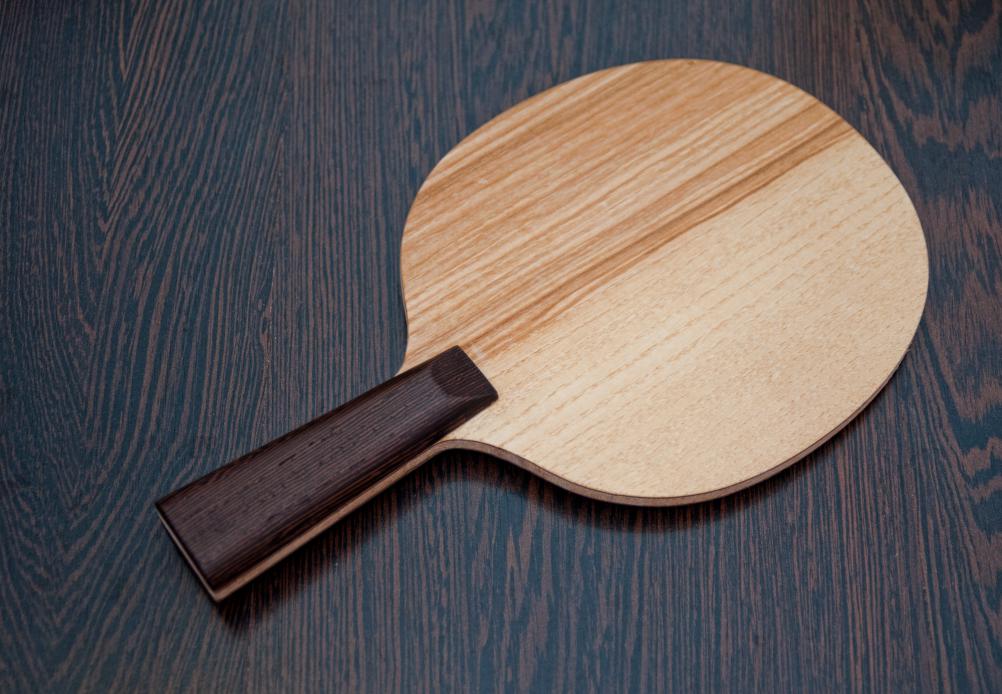

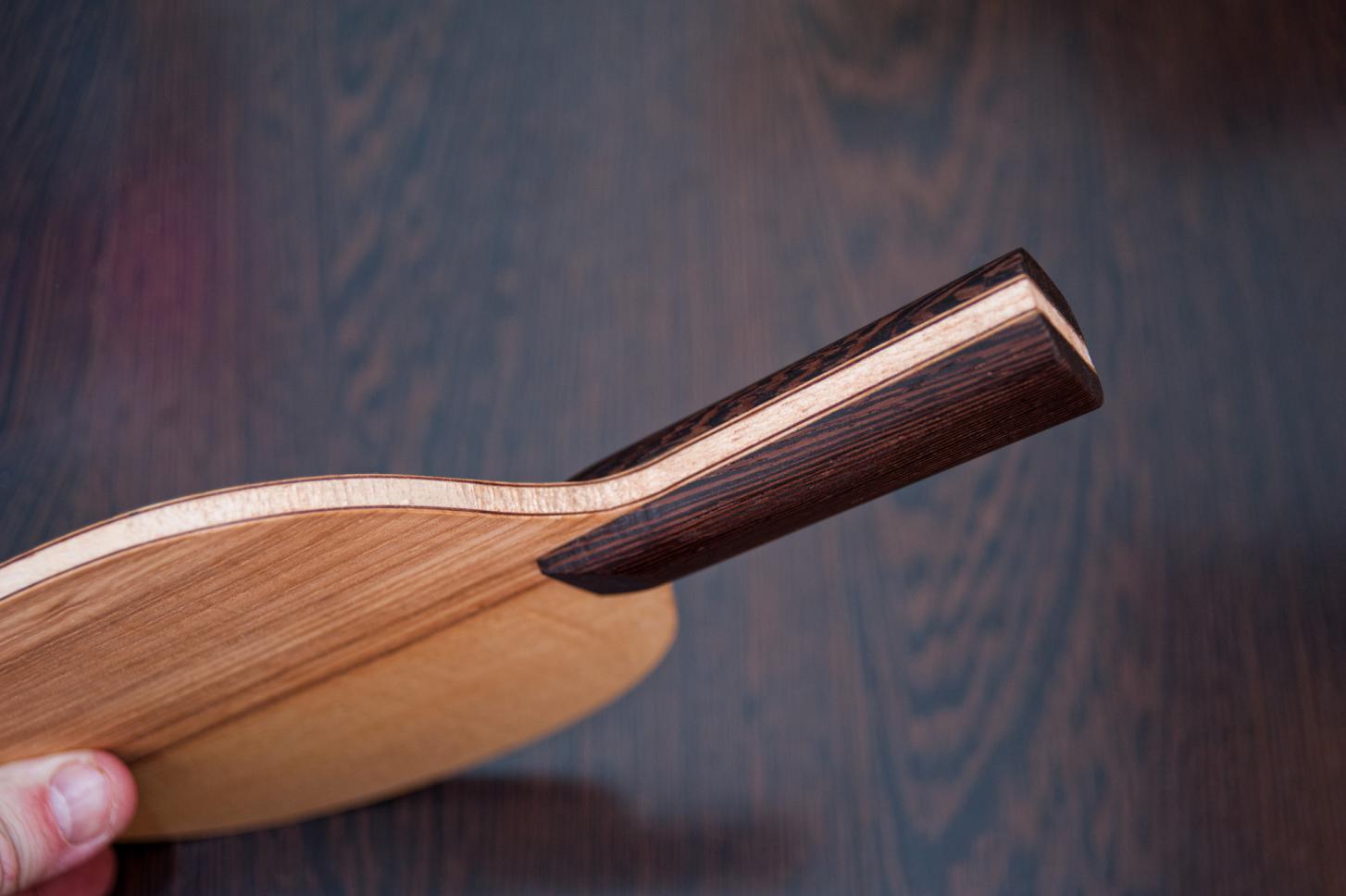

This one is all , 83g
Brown ash , mahogany, balsa , mahogany, brown ash
handle : WENGE
View attachment 8748

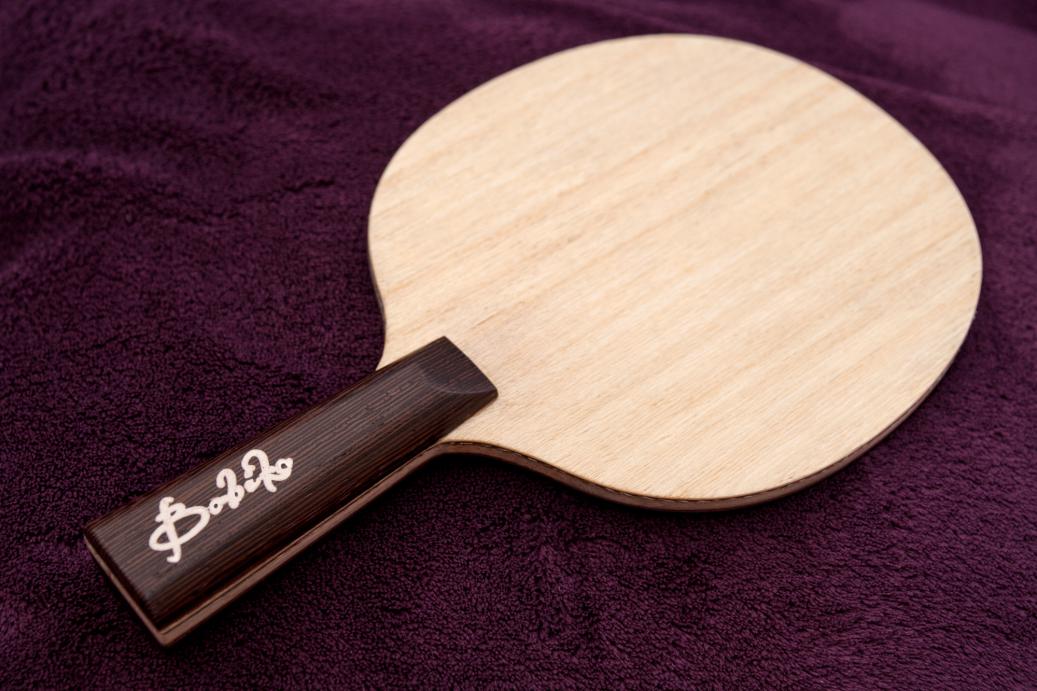

And this last one is my new personal blade OFF+, 98g

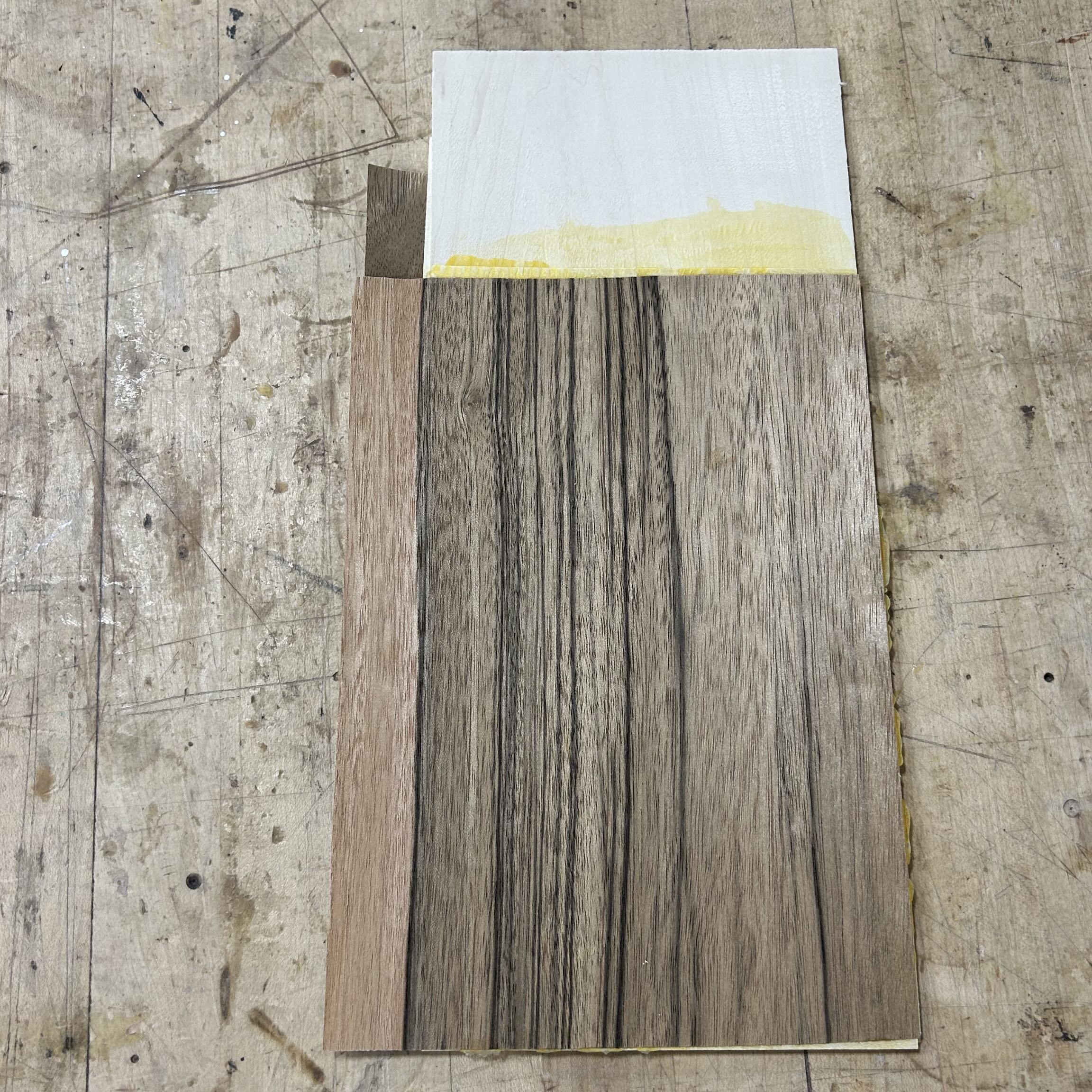

boire, birch, carbon , balsa , aramid/carbon, birch, koto
handle : wenge..... the writing is not good made but i have to save material ... ;-)

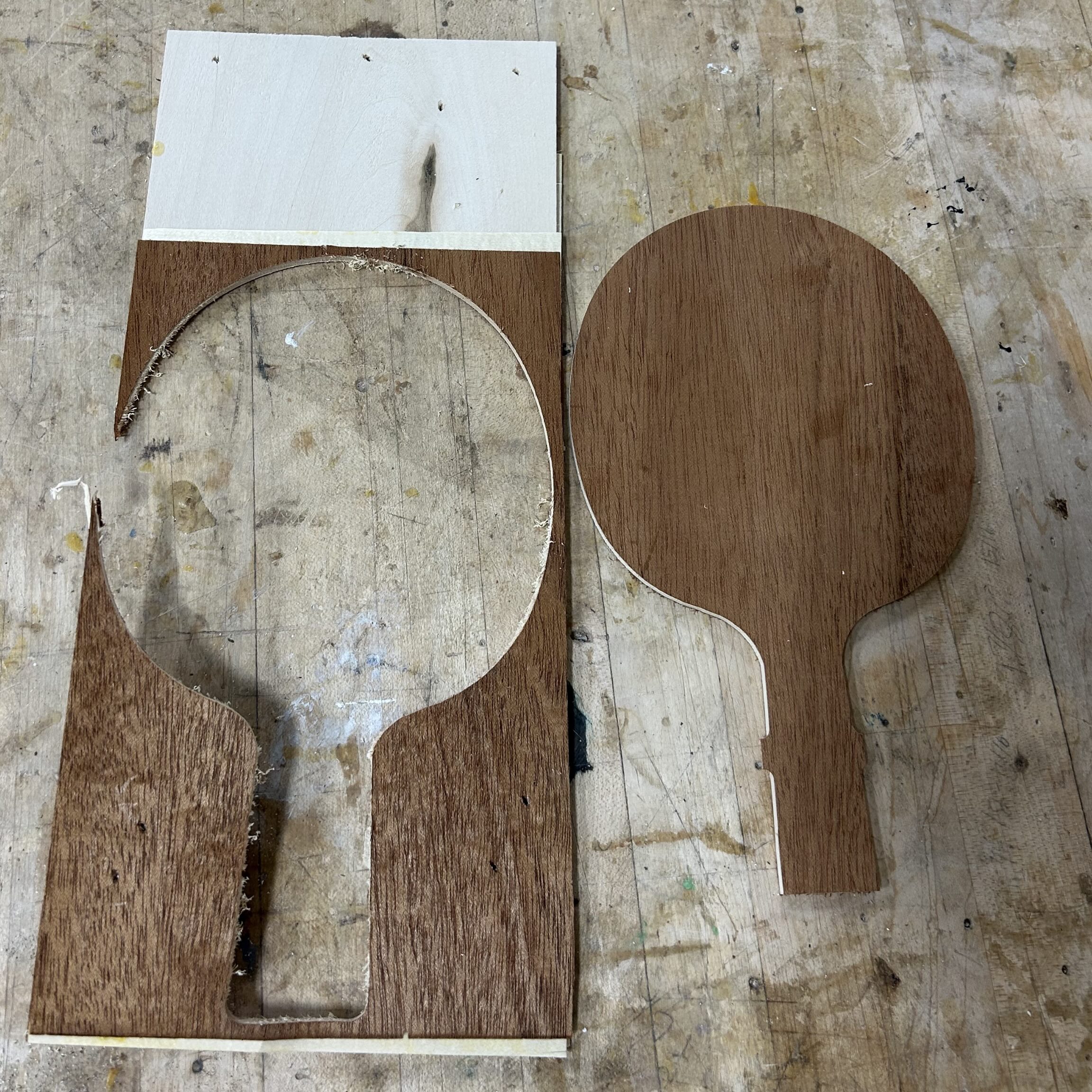

Hello. Which material did you use to make the mold in the first video cutting the blade and where can I buy it?



[bobpuls]

Search for "komatex board" ... I think you will be able to find it in your location.



[Felmonte09]

Found it. Thank you



[Felmonte09]

Hey Bobpuls, how can I paint the handle of the blade?

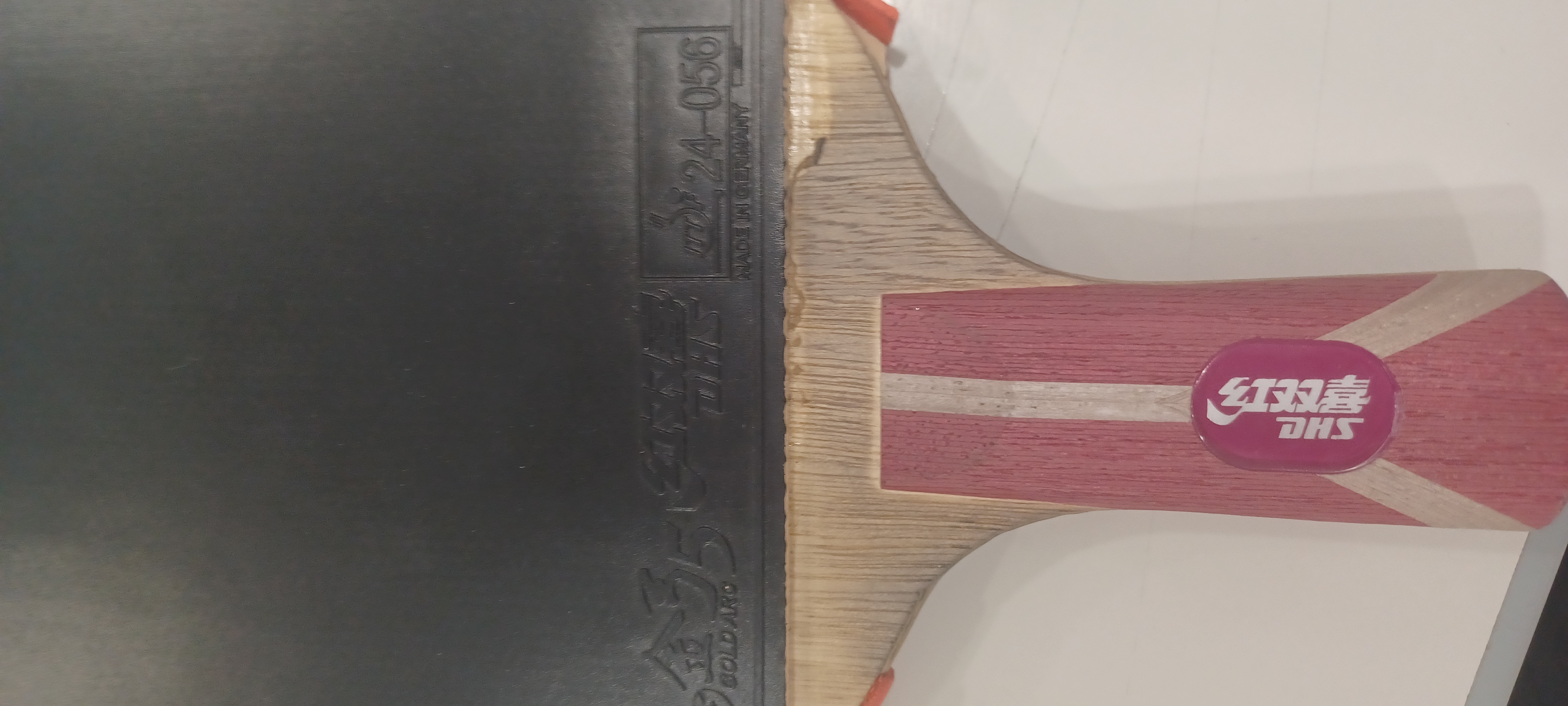

For example, I would like to do a similar handle to this one shown in the photo (there is no need for the details, only the colour would be fine). How do I paint it? With normal ink?



[bobpuls]

Hey Robert!

I was looking through your thread today for information on whether other blade builders use a "climb-cut" on their router (i.e., going clock-wise with the direction of the cutter-head) to get smoother edges on their blades - I found the information I was looking for. I don't know if I ever read this entire thread before and I just wanted to say how much I appreciate your willingness to share your process and share the new things you've implemented over the years. Thanks!

After while and after all i have learned the spiral bit gets the cleanest cut (i found this when i start to build speakers 😁 )



[bobpuls]

Hey Bobpuls, how can I paint the handle of the blade?
For example, I would like to do a similar handle to this one shown in the photo (there is no need for the details, only the colour would be fine). How do I paint it? With normal ink?
View attachment 26746

Sorry man this process i know how to but is expensive.... Better ask nate4s he is doing it really well



[Felmonte09]

Ok, thank you



[PaddyPolar]

Does anyone know where a reliable, cheap carbon supplier is in the UK?



[yoass]

Does anyone know where a reliable, cheap carbon supplier is in the UK?

Shell is UK-based, and sells wreck-the-planet-fast stuffs at worry-not-about-tomorrow prices.
