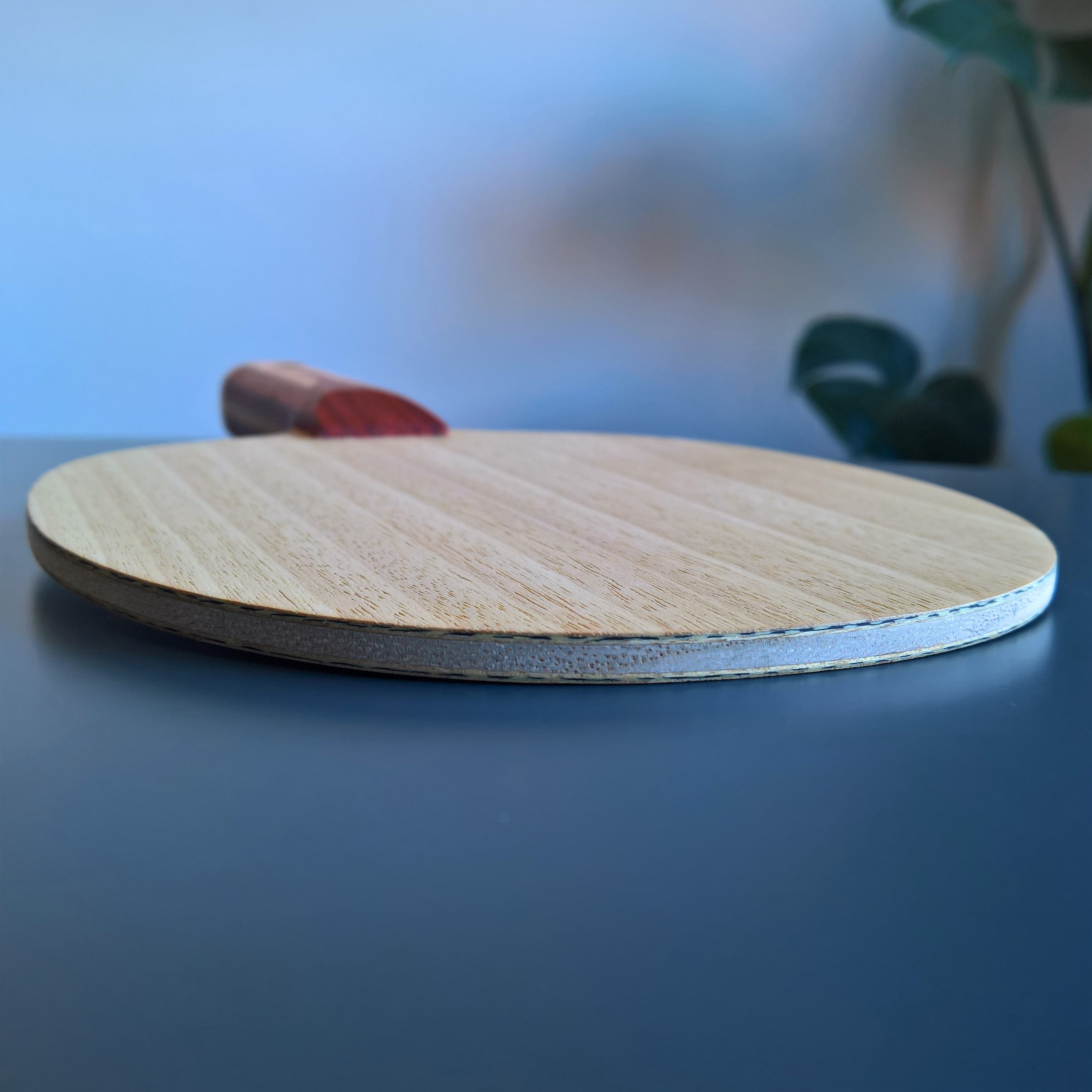

Another one of my experiments. I had built a similar one that was thicker, that one was fast but also a bit head-heavy so I wanted to make something more controlled and spin oriented. The lower weight and balance point also make it much more comfortable to play.

Composition: Fineline / Glassfiber / Kiri / Glassfiber / Fineline
Weight: 87.6g
Thickness: 6.3mm
Freq.: 1184Hz
Balance: 2.7cm (Low)





This user has no status.
This user has no status.
Well-Known Member
Dec 2011
1,257
1,745
3,375
Anyone like fish? Awesome fish-scale pattern on these Ako top plies.

Composition: Ako / I-C / Framiré / Kiri / Framiré / I-C / Ako
Weight: 79.6g and 79.8g
Thickness: ~5.65mm
Freq.: 1330 Hz
Balance: 2.5cm (low)





Last edited:
This user has no status.
This user has no status.
Well-Known Member
Dec 2011
1,257
1,745
3,375
This one has the same structure and about the same thickness as the blade from two posts ago, however it uses a thicker outer ply and thinner core. This gives it less speed, more control, more feedback, and a higher top spin arc than the other one, making it perfect for an allround top spin style.

Composition: Fineline / Glassfiber / Kiri / Glassfiber / Fineline
Weight: 86.1g
Thickness: 6.2mm
Freq.: 1162Hz
Balance: 3.3cm (Med)






This user has no status.
This user has no status.
Well-Known Member
Dec 2011
1,257
1,745
3,375
Another Viscaria type composition, definitely my most requested blade, and for a good reason.

Composition: Koto / A-C / Ayous / Kiri / Ayous / A-C / Koto
Weight: 90.2g
Thickness: 5.85mm
Freq.: 1464 Hz
Balance: 1.8 (Very Low)











This user has no status.
This user has no status.
Well-Known Member
Dec 2011
1,257
1,745
3,375

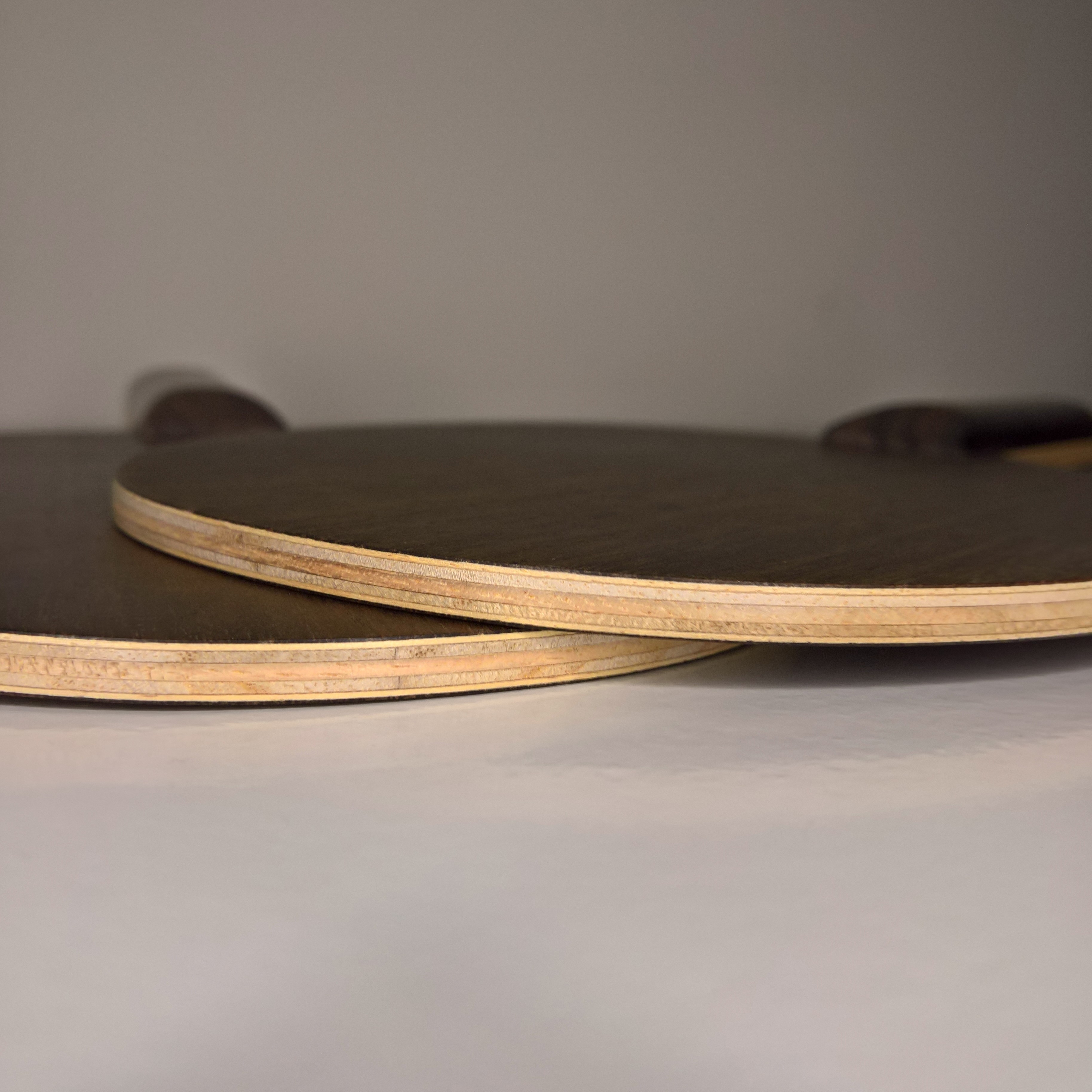

I don't know why, but I get the feeling these two are about to drop the hottest mixtape of 2021 😎

Composition: Smoked Eucalyptus / Ayous / Glass-Fiber / Kiri / Kiri / Kiri / Glass-Fiber / Ayous / Smoked Eucalyptus
Weight: 87.1 and 87.0g
Thickness: ~5.85mm
Freq.: 1270 Hz
Balance: 2.7cm (Low)








This user has no status.
This user has no status.
Well-Known Member
Jan 2021
1,235
535
2,031
I don't know why, but I get the feeling these two are about to drop the hottest mixtape of 2021 😎

Composition: Smoked Eucalyptus / Ayous / Glass-Fiber / Kiri / Kiri / Kiri / Glass-Fiber / Ayous / Smoked Eucalyptus
Weight: 87.1 and 87.0g
Thickness: ~5.85mm
Freq.: 1270 Hz
Balance: 2.7cm (Low)








Wow, these are lookers for sure


This user has no status.
This user has no status.
Well-Known Member
Dec 2011
1,257
1,745
3,375
I've talked about Diolen fibre before, Diolen is a high tenacity polyester fibre and many manufactures use it as substitute for Arylate or Aramid (even tough they don't call it that) because it also provides a soft feeling. In the pictures we can see two different colors (red and black) but in this case I'm using a plain Diolen fabric, so no carbon is involved in the weave. This plain Diolen fabric is one of the softest I use, besides glass-fiber, so it provides some vibration damping along with a small increase in sweetspot and speed, although less than with ALC or I-C for example. However, it does retain more of a woody feeling and control, so it's a perfect blade for those that like the feel of an outer fiber blade, but without the speed increase that usually accompanies them.

Available in my FS thread.

Composition: Koto / Diolen / Ayous / Kiri / Ayous / Diolen / Koto
Weight: 84.6g
Thickness: 5.85mm
Freq.: 1270 Hz
Balance: 3.0 (Med)










This user has no status.
This user has no status.
Well-Known Member
Dec 2011
1,257
1,745
3,375
So, the secret services contacted me saying Ma Long was out there shooting some rockets, and wanted to know what kind of weapon he was using. I told them it was a W968, so they asked if I could make it even more powerful! Well, I told them I could, but a weapon like this will be dangerous in the wrong hands, especially if it flies out and hits someone in the head 😄

Composition: Limba / Ayous / A-C / Ayous / A-C / Ayous / Limba
Weight: 110.2g
Thickness: 7.0mm
Freq.: 1550 Hz
Balance: 2.7cm (Low)






This user has no status.
This user has no status.
Well-Known Member
Dec 2011
1,257
1,745
3,375
Remember that wall I was building? This is it, something to evoke to my Civil Engineering background, a Viscaria type composition that has been my personal blade for some time.

In a previous post I explained how there are some things I can tweak during the building process to make a blade harder and faster, or softer and slower, but keeping the same exact composition. This is where the frequency reading comes in handy, Black Tag Viscarias are known for having a softer feel and a lower frequency peak of about 1380 Hz, and this was exactly what I was going for.

Composition: Koto / A-C / Ayous / Kiri / Ayous / A-C / Koto
Weight: 85.7g
Thickness: 5.7mm
Freq.: 1378 Hz
Balance: 2.6 cm (Low)
