SDC Handmade Blades

This user has no status.

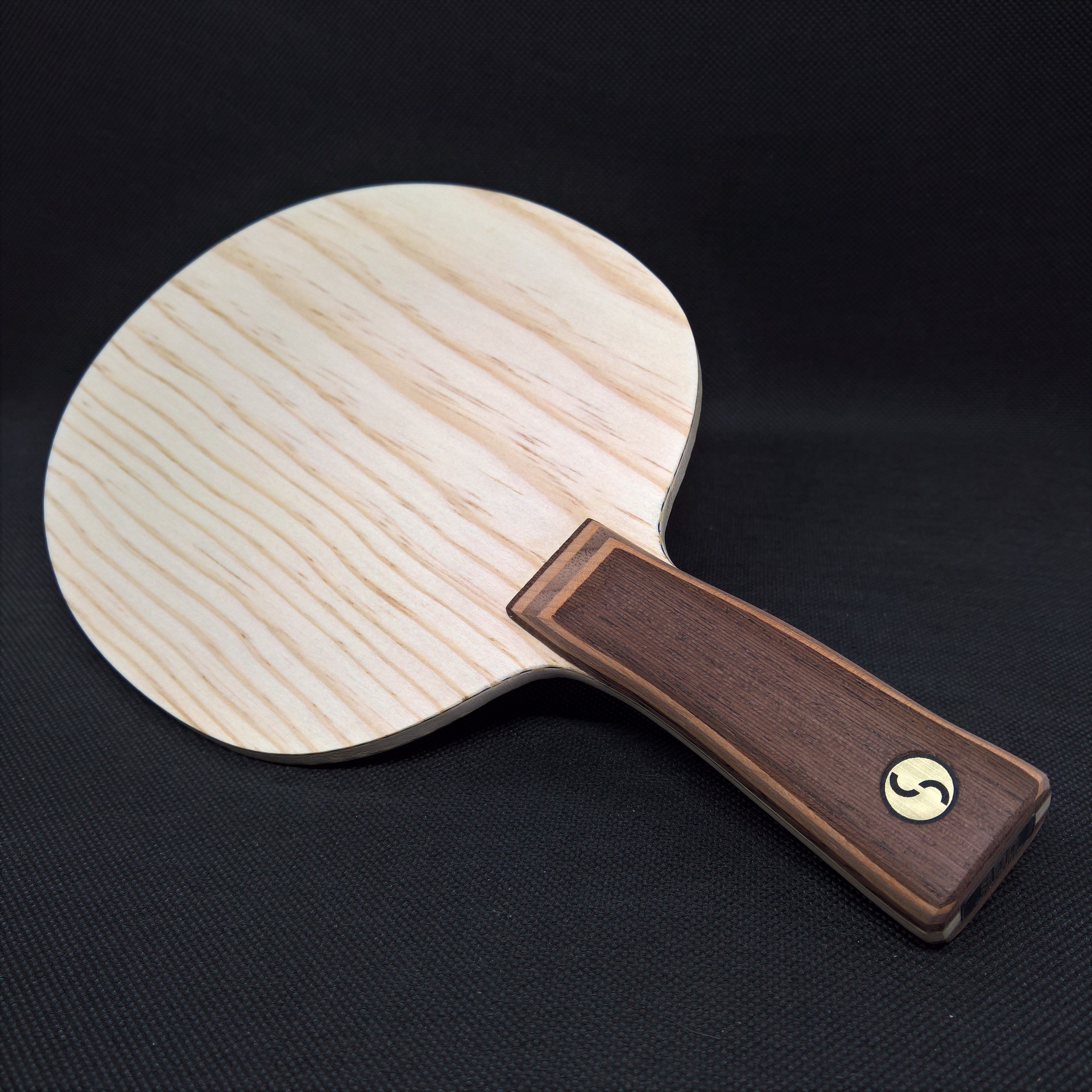

This blade introduces a new fiber I've been using - Spectra.

Spectra and Dyneema (used by Tibhar) are Ultra-High Molecular Weight Polyethylene fibers. This remarkably durable material is one of the world’s strongest and lightest fibers. Performance wise, this fiber feels soft, with a moderate speed and sweet spot increase, but it's main characteristics are the lightness and the loud sound it produces on hard impact. This makes it a very user friendly and pleasant fiber to play with.

The handle one is Mexican Granadillo, a very hard and heavy wood.

- Framiré / Spectra / Limba / Ayous / Limba / Spectra / Framiré
- 90.0g
- 6.15mm
- 1442Hz
- Balance: 1.9cm (Very Low)






I am the Owner of this Blade.
BH: Nittaku Gorikki Kaisoku 2.00mm Bh
FH: Tibhar Quantum X Pro 2.0 mm
You "hear the impact of your hit,tangential,frontal,..
It is an Outer Layer so its Off range,maybe some say Off-,but the rubbers are also part of the Setup.
Thx Sergió,could recommend his work to all.
Classic Look,anatomic "dinosaur" slye handle with the mexican granadillo instrument wood.
My nickname is "Castanholas"oder "Kastagnete" in german.
🎸


Last edited:
This user has no status.
This user has no status.
Well-Known Member
Dec 2011
1,264
1,753
3,390

I am the Owner of this Blade.
BH: Nittaku Gorikki Kaisoku 2.00mm Bh
FH: Tibhar Quantum X Pro 2.0 mm
You "hear the impact of your hit,tangential,frontal,..
It is an Outer Layer so its Off range,maybe some say Off-,but the rubbers are also part of the Setup.
Thx Sergió,could recommend his work to all.
Classic Look,anatomic "dinosaur" slye handle with the mexican granadillo instrument wood.
My nickname is "Castanholas"oder "Kastagnete" in german.
🎸

Castanholas fits very nicely 😁


  • Like
Reactions: Haraold
This user has no status.
This user has no status.
Well-Known Member
Dec 2011
1,264
1,753
3,390

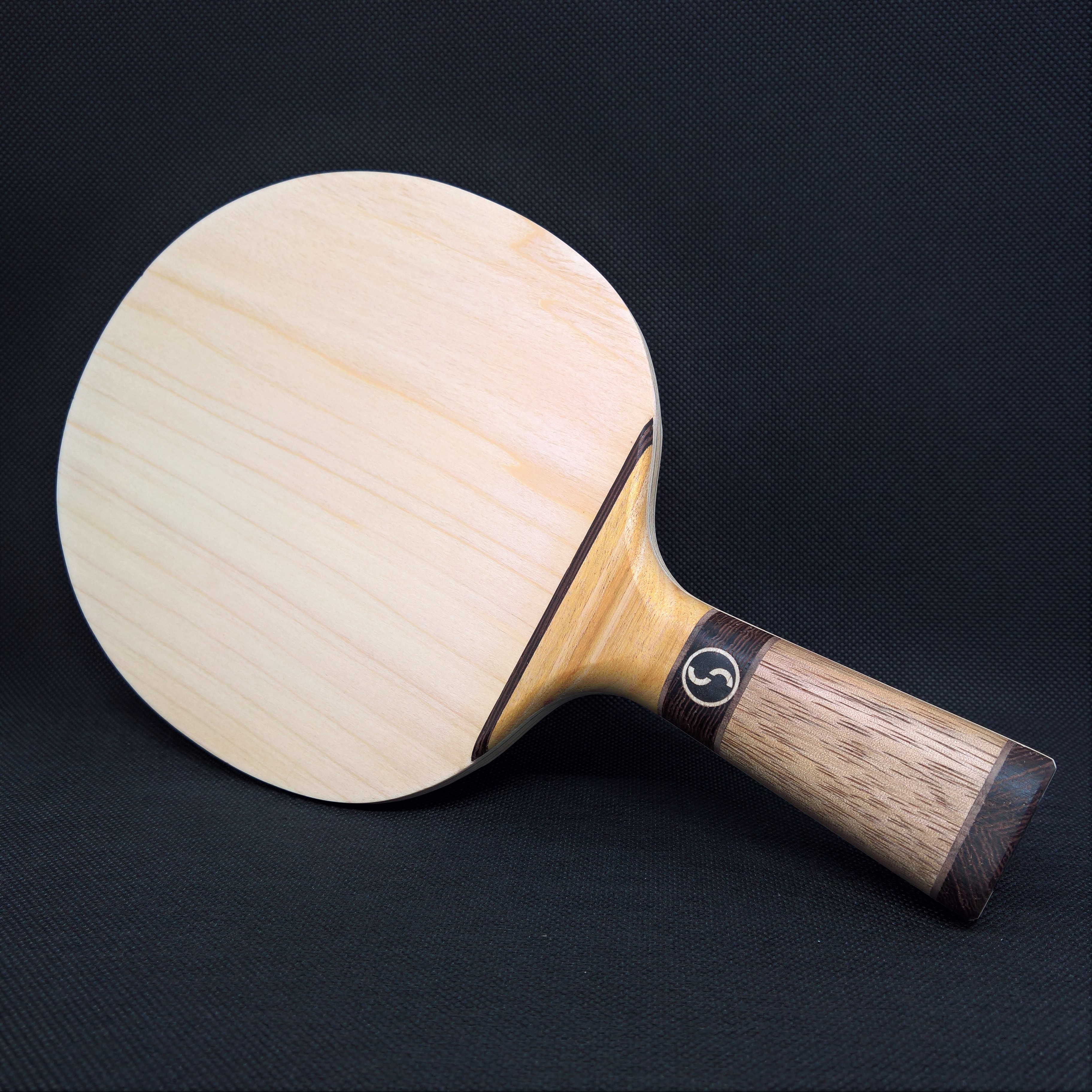

This one was supposed to be a custom order, but unfortunately it turned out to be a little slower than what we were aiming for. It's loosely based on a DHS 032, but with a different ply structure, Hinoki and Western Red Cedar instead of Basswood and Luan. Built with hide glue, a classic looking blade with a classic feeling as well.

Available FS.

- Hinoki / WRC / Hinoki / WRC / Hinoki
- 91.8g
- 7.2mm
- 157x150mm
- FL (100x35x25-23.5mm)
- 1313Hz
- Balance: 2.2cm (Low/Very Low)






  • Like
Reactions: Metaxa and Haraold
This user has no status.
This user has no status.
Well-Known Member
Jan 2021
1,251
546
2,061
This one was supposed to be a custom order, but unfortunately it turned out to be a little slower than what we were aiming for. It's loosely based on a DHS 032, but with a different ply structure, Hinoki and Western Red Cedar instead of Basswood and Luan. Built with hide glue, a classic looking blade with a classic feeling as well.

Available FS.

- Hinoki / WRC / Hinoki / WRC / Hinoki
- 91.8g
- 7.2mm
- 157x150mm
- FL (100x35x25-23.5mm)
- 1313Hz
- Balance: 2.2cm (Low/Very Low)





Is the handle on this one skinny or fat compared to my Mjölnir?

Cheers
L-zr


This user has no status.
This user has no status.
Well-Known Member
Jan 2021
1,251
546
2,061

It's similar, but not exactly the same shape. It flares out more on the bottom, it's also thicker but slightly rounder near the wings.

Doesn’t sound too bad, If it’s still available depending on the price I want it. I can’t get to my email from home but send me a mail and let’s discuss it.

Cheers
L-zr


  • Like
Reactions: hipnotic
This user has no status.
This user has no status.
Well-Known Member
Dec 2011
1,264
1,753
3,390

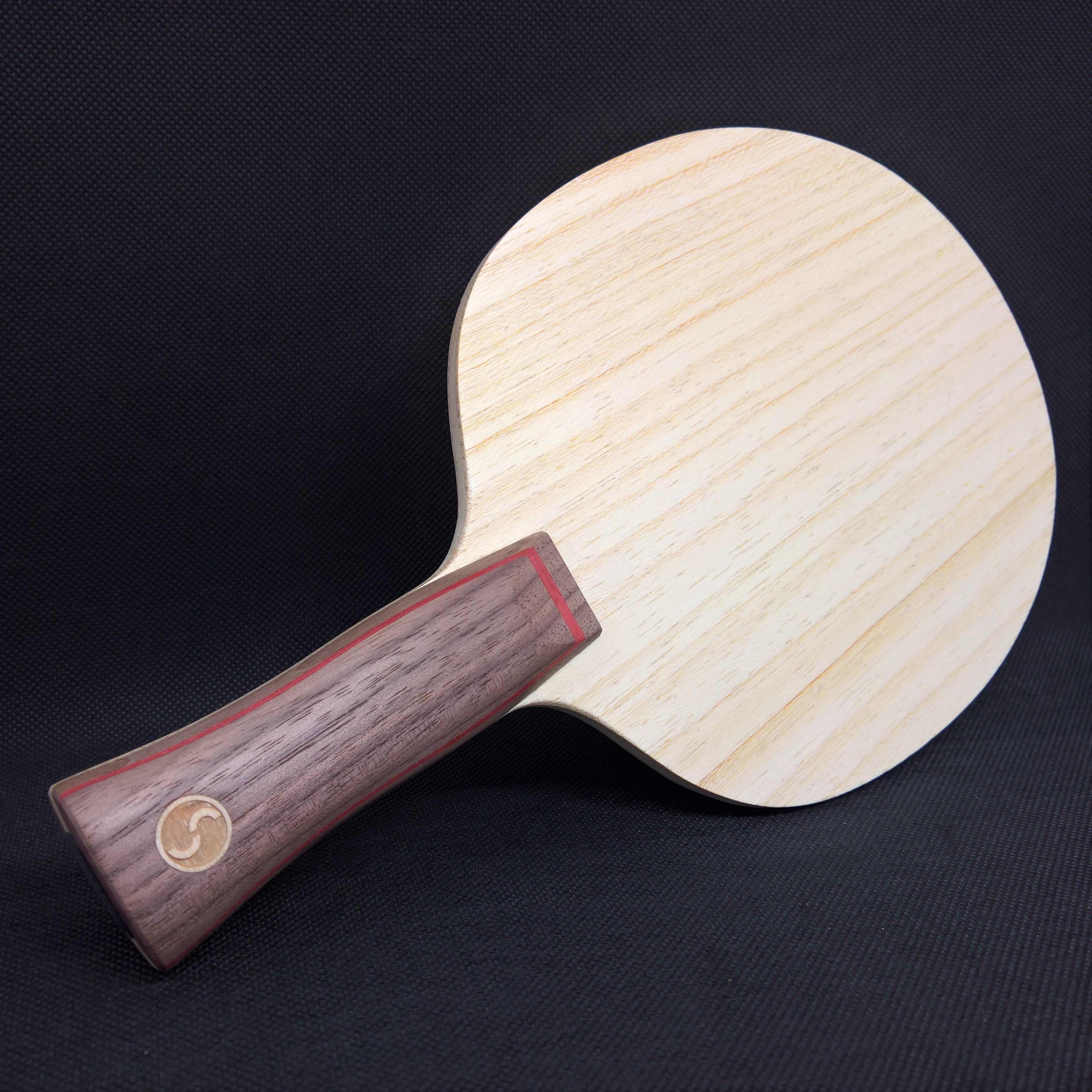

Another 5 ply with a classic composition. Normally these types of blades use Spruce on the medial layer, but I decided to use Cypress to give it a softer feel.

Available FS.

- Koto / Cypress / Ayous / Cypress / Koto
- 89.4g
- 5.85mm
- 157x150mm
- AN (102x25-23mm)
- 1250Hz
- Balance: 2.4cm (Low)






  • Like
Reactions: Haraold
This user has no status.
This user has no status.
Well-Known Member
Dec 2011
1,264
1,753
3,390

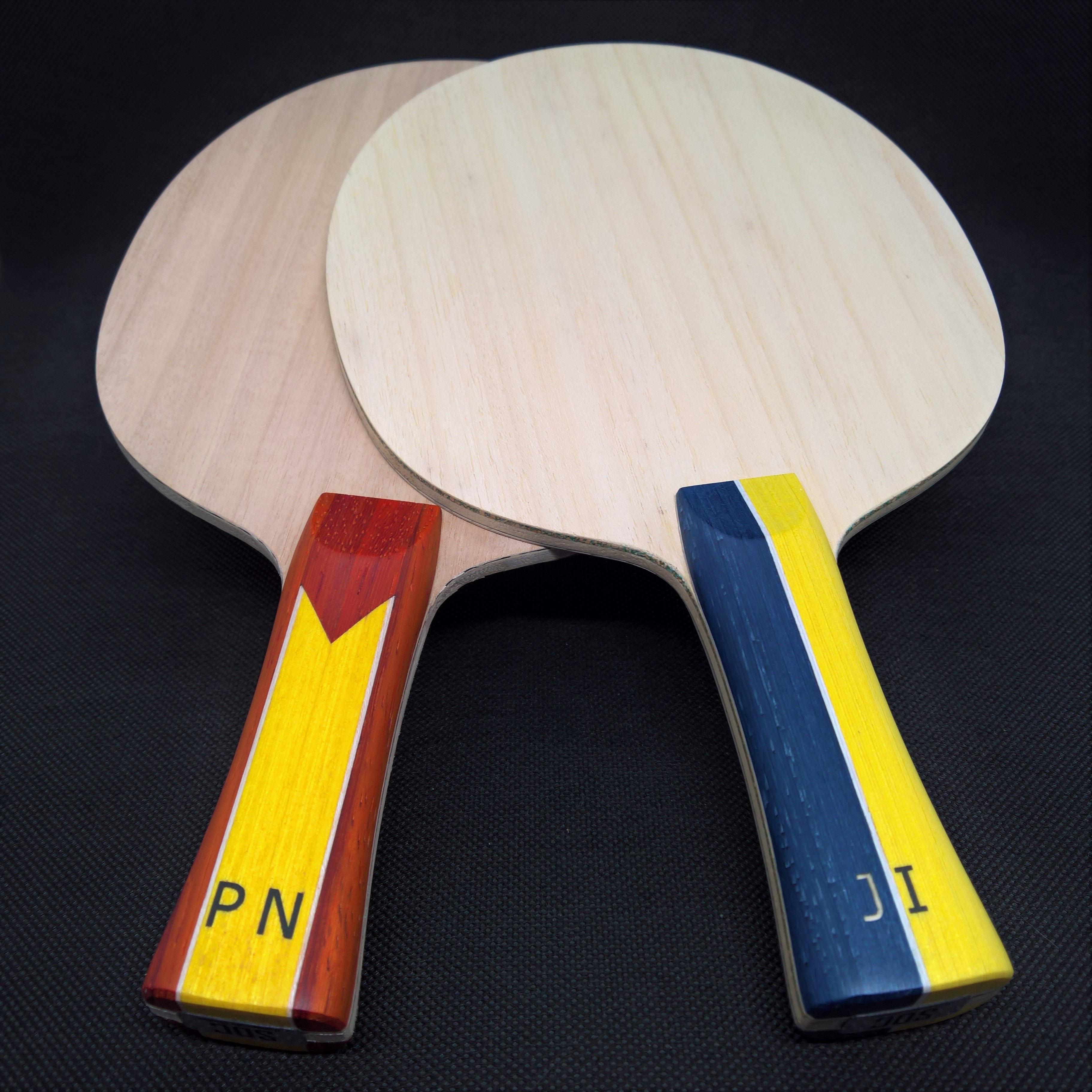

A pair of two very different blades:

Left
- Anigre / A-C / Ayous / Kiri / Ayous / A-C / Anigre
- 80.8g
- 5.65mm
- 1550Hz
- Balance: 2.3cm (Low)

Right:
- Limba / Spruce / T-C90 / Ayous / Cork / G-F / Ayous
- 89.5g
- 6.1mm
- 1150Hz
- Balance: 2.3cm (Low)






  • Like
  • Love
Reactions: bobpuls and Kolev
This user has no status.
A pair of two very different blades:

Left
- Anigre / A-C / Ayous / Kiri / Ayous / A-C / Anigre
- 80.8g
- 5.65mm
- 1550Hz
- Balance: 2.3cm (Low)

Right:
- Limba / Spruce / T-C90 / Ayous / Cork / G-F / Ayous
- 89.5g
- 6.1mm
- 1150Hz
- Balance: 2.3cm (Low)





May I ask what cork does in a blade? Does it make the blade softer, or flex more?


This user has no status.
This user has no status.
Well-Known Member
Dec 2011
1,264
1,753
3,390
May I ask what cork does in a blade? Does it make the blade softer, or flex more?

Cork has virtually no stiffness of its own, it bends very easily in every direction, so it doesn't add stiffness to the blade, only indirectly by increasing the distance between the other plies. Also, because it has a lot of voids, there is some energy dissipation, and it serves as a dampening layer.


  • Wow
Reactions: PingBirdPong
This user has no status.

Cork has virtually no stiffness of its own, it bends very easily in every direction, so it doesn't add stiffness to the blade, only indirectly by increasing the distance between the other plies. Also, because it has a lot of voids, there is some energy dissipation, and it serves as a dampening layer.

Good for LP defensive use and Anti spin right?


This user has no status.
This user has no status.
Well-Known Member
Dec 2011
1,264
1,753
3,390
Who says carbon blades need to be fast?

- Willow / Ayous / soft-carbon / Ayous x3 / soft-carbon / Ayous / Willow
- 94.5g
- 5.6mm
- 970Hz
- Balance: 1.8cm (Very low)





  • Like
Reactions: Haraold
This user has no status.
This user has no status.
Well-Known Member
Dec 2011
1,264
1,753
3,390

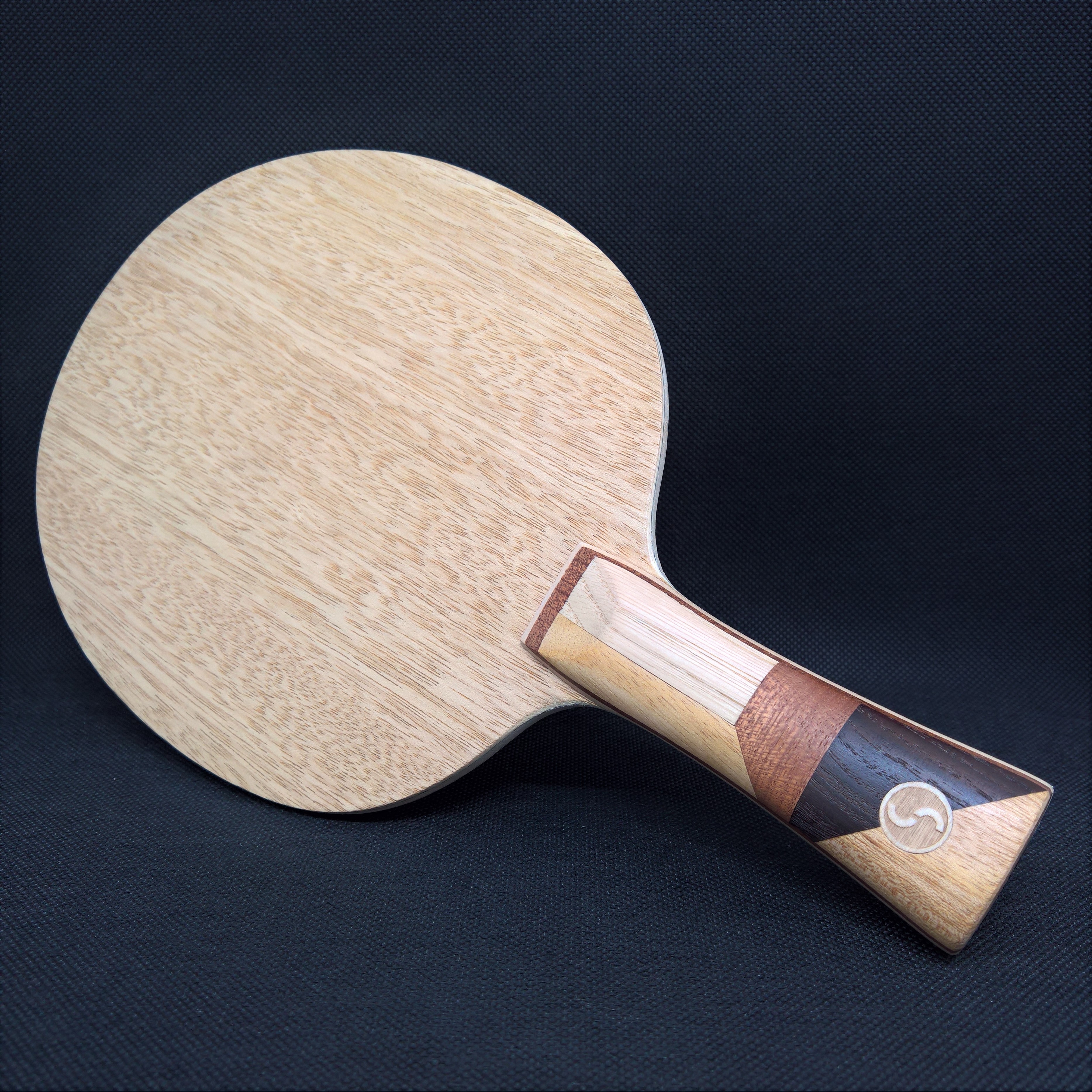

You know how I use AxC fiber, that one achieves a softer touch (compared to regular A-C) by having the Aramid from side to side, and higher stiffness by having the Carbon up to down. Well, AyC is the exact opposite of that, the Carbon is running horizontally and the Aramid vertically, achieving a harder touch with more flexibility. In terms of performance what this does is to make the blade harder and more stable on higher impact, and with an increased power ceiling. But having a harder fiber close to a relatively soft core, also changes the sound of the blade. The sudden difference in density causes a loud "Tok", which personally I don't like, but some people do! These nuances are important, and many know blades on the market exhibit them, despite looking similar to each other.

Available FS.

- Framiré / Ayous / AyC / Ayous / AyC / Ayous / Framiré
- 87.9g
- 6.0mm
- 157x150mm
- FL (102x25.5-23.5mm)
- 1290Hz
- Balance: 2.6cm (Low)






  • Like
Reactions: Haraold
This user has no status.
This user has no status.
Well-Known Member
Apr 2020
1,831
640
3,613
You know how I use AxC fiber, that one achieves a softer touch (compared to regular A-C) by having the Aramid from side to side, and higher stiffness by having the Carbon up to down. Well, AyC is the exact opposite of that, the Carbon is running horizontally and the Aramid vertically, achieving a harder touch with more flexibility. In terms of performance what this does is to make the blade harder and more stable on higher impact, and with an increased power ceiling. But having a harder fiber close to a relatively soft core, also changes the sound of the blade. The sudden difference in density causes a loud "Tok", which personally I don't like, but some people do! These nuances are important, and many know blades on the market exhibit them, despite looking similar to each other.

Available FS.

- Framiré / Ayous / AyC / Ayous / AyC / Ayous / Framiré
- 87.9g
- 6.0mm
- 157x150mm
- FL (102x25.5-23.5mm)
- 1290Hz
- Balance: 2.6cm (Low)






next step, naturally, would be to try the effects of mounting AxC on one side and A-c on the other....... DIAGONALLY, 😁


  • Like
Reactions: Haraold
This user has no status.
This user has no status.
Well-Known Member
Dec 2011
1,264
1,753
3,390
I don't see any benefit in using a composite diagonally when it has different fibers in each direction. Can it work? Maybe. But it creates an asymmetry that can lead to warping problems. It makes sense when the composite is just one plain fiber, or the fabric has a symmetric weave pattern within itself. I could do it with regular A-C, but not with AxC or AyC.

I already use Textreme-Carbon with 90, 160 or 200 gsm in 45 or 90°, they can sue me now if they want [emoji28].

Sent from my MAR-LX1A using Tapatalk
